KHz Tuning Fork Crystal
| Product | Series | Model | Package | Dimension L x W x H [mm] | Frequency | Brief Sheet [Automotive] |
Brief Sheet [Industrial] |
Enquiry |
|---|---|---|---|---|---|---|---|---|
NEW |
1210SX | MU | 1210 Ceramic SMD 4-Pad | 1.2 x 1 x 0.35 | 32.768KHz |  |
 |
|
 |

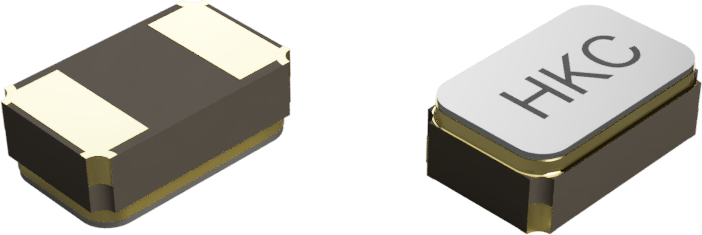

1610SX | MT | 1610 Ceramic SMD 2-Pad | 1.6 x 1 x 0.5 | 32.768KHz | |
|
|
 |
2012SX | MQ | 2012 Ceramic SMD 2-Pad | 2 x 1.2 x 0.6 | 32.768KHz | |
|
|
 |
3215SX | M8 | 3215 Ceramic SMD 2-Pad | 3.2 x 1.5 x 0.9 | 32.768KHz | |
|
|
 |
3215GX | P8 | 3215 Glass Frit SMD 2-Pad | 3.2 x 1.5 x 0.8 | 32.768KHz | |
|
|
 |
8038PX | M3 | 8038 Plastic SMD 4-Pad | 8 x 3.8 x 2.5 | 32.768KHz / 28 – 100KHz | |
|
|
 |
7015PX | M6 | 7015 Plastic SMD 4-Pad | 7 x 1.5 x 1.4 | 32.768KHz | |
|
|
 |
2×6 | 2T | 2×6 Cylinder Thru-hole | 6 x Φ2 | 32.768KHz / 28 – 100KHz | |
|
|
| |
3×8 | 3T | 3×8 Cylinder Thru-hole | 8 x Φ3 | 32.768KHz / 28 – 100KHz | |
|
|
 |
2x6SM | ST | Cylinder Bend Lead Type | 6 x Φ2 | 32.768KHz / 28 – 100KHz | |
|
|
 |
2x6SM | SJ | Cylinder Bend Lead with Gull Wing Type | 6 x Φ2 | 32.768KHz / 28 – 100KHz | |
|
